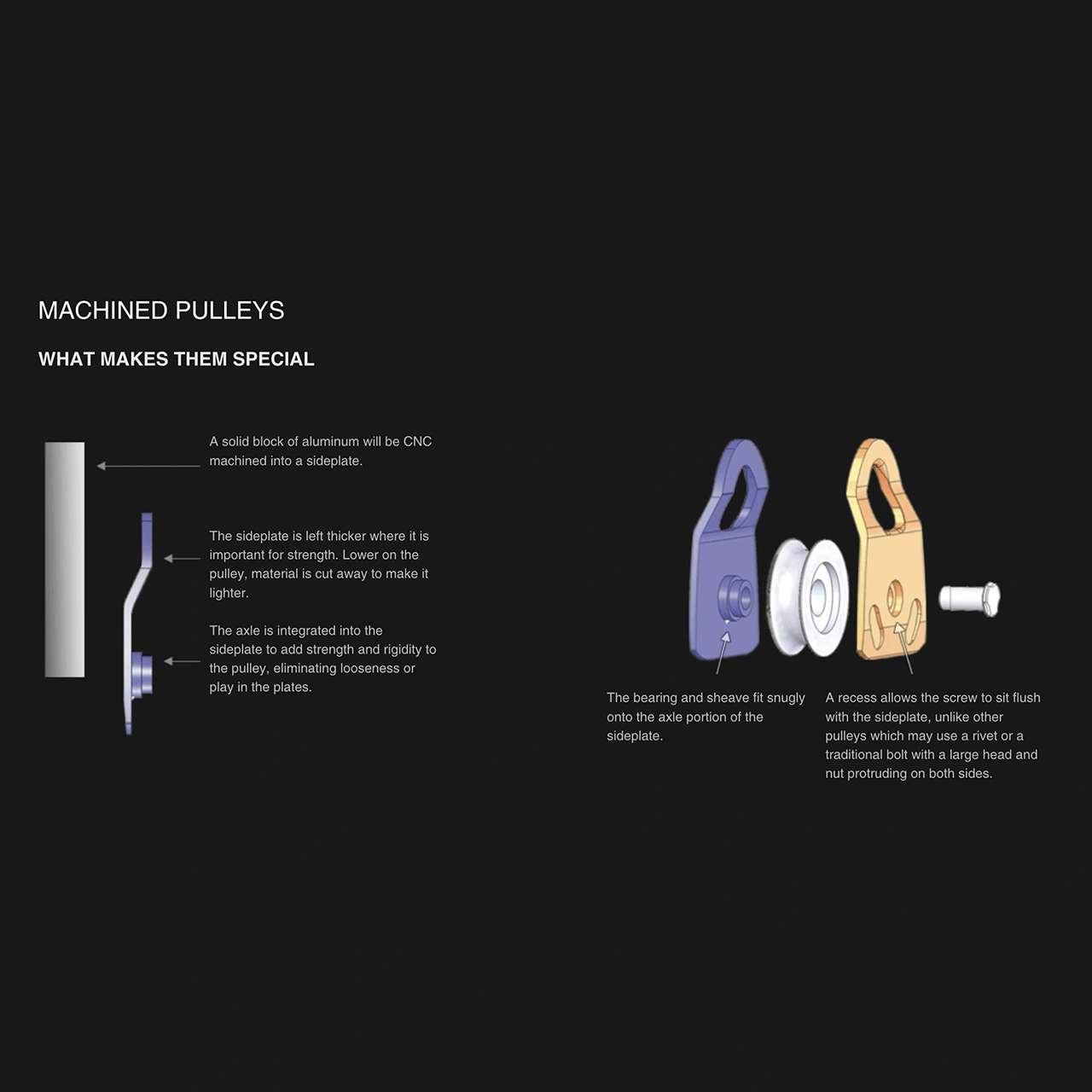

The Machined Mini and Rescue Pulleys are designed and manufactured like no other pulley in the world. Starting as a block of solid T6 aluminum, the sideplates for the pulley are milled in such a way to leave material where it's needed most for strength. And because the sideplate starts out of as a solid block, the axle for the pulley is left as an integrated part of the sideplate, further adding to its strength and overall rigidness.

The integrated axle also allows the pulley to use a custom manufactured threaded bolt which is countersunk into the sideplate, giving the pulley a unique snag-resistant profile. These one-of-a-kind features are the basis for the Machined Pulley's impressive strength, slim profile and a quality of manufacture that is second to none.

• Recessed axle screw sits flush to pulley sideplates, creating slim, snag-free profile.
• Machined—not stamped parts, create a stronger pulley, increasing its strength-to-weight ratio.
• Axle is integrated into sideplates, adding additional strength and rigidity to the pulley.
• Machined sideplates allow for a more compact design while maintaining the same rope capacity of other pulleys.
• Utilizes high-efficiency bearings.
• *Please note: the Machined Pulleys are currently available in black only.

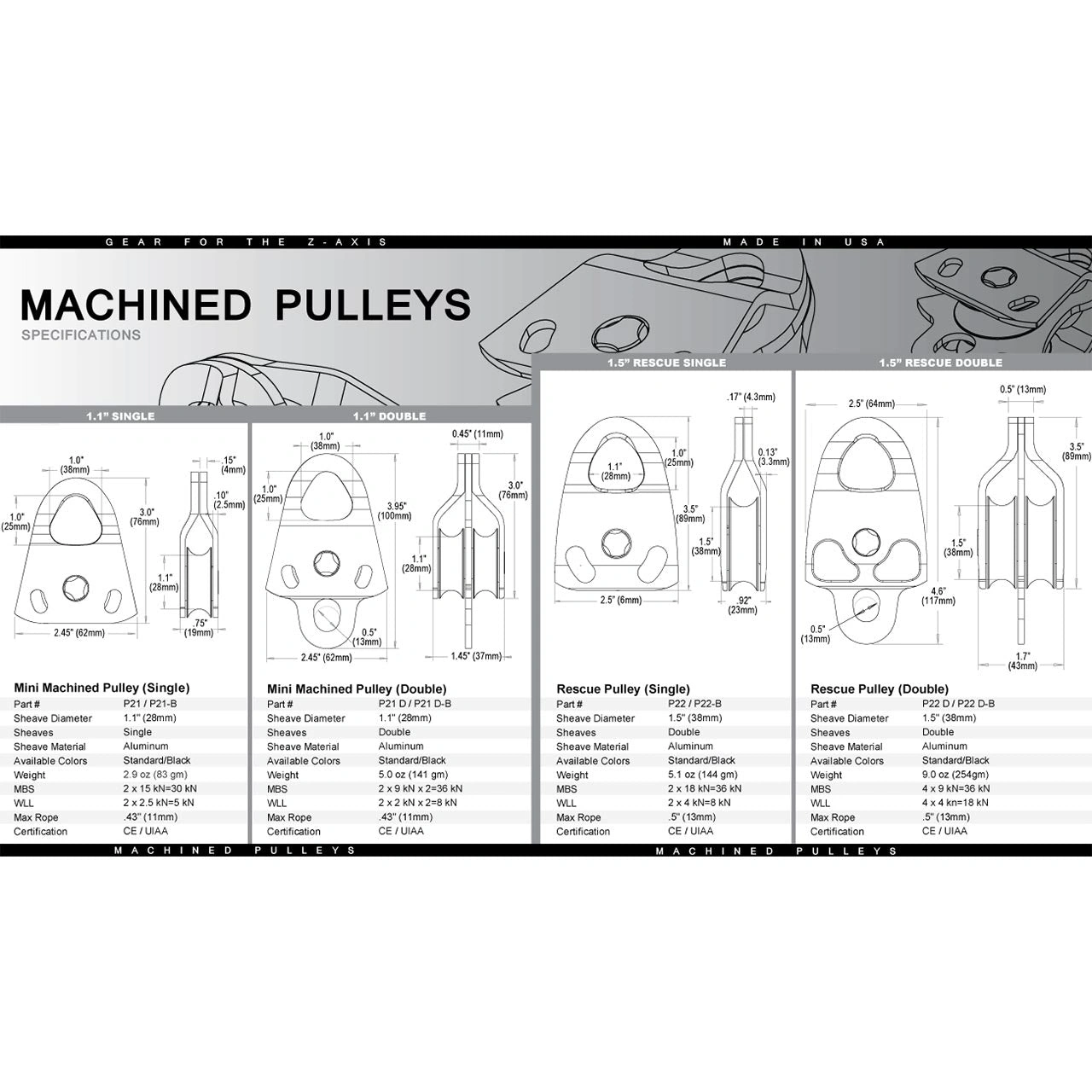

Specifications

• SKU: P21D-B
• Product / Weight / MBS / WLL / Max Rope / Cert
  1.1' Mini Double | 5.0 oz (141gm) | 36kN | 8kN | .43' (11mm) | CE
