Productdetails

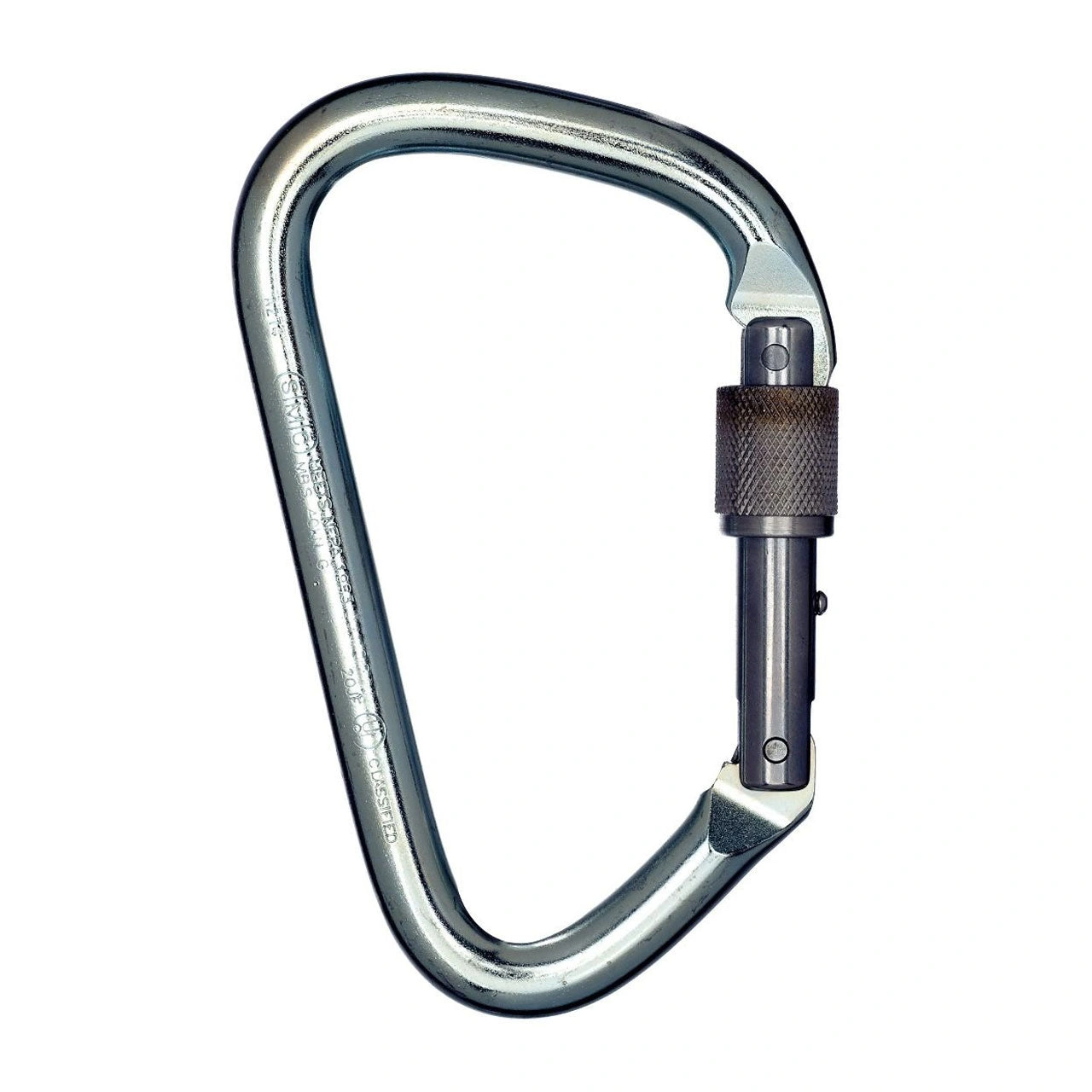

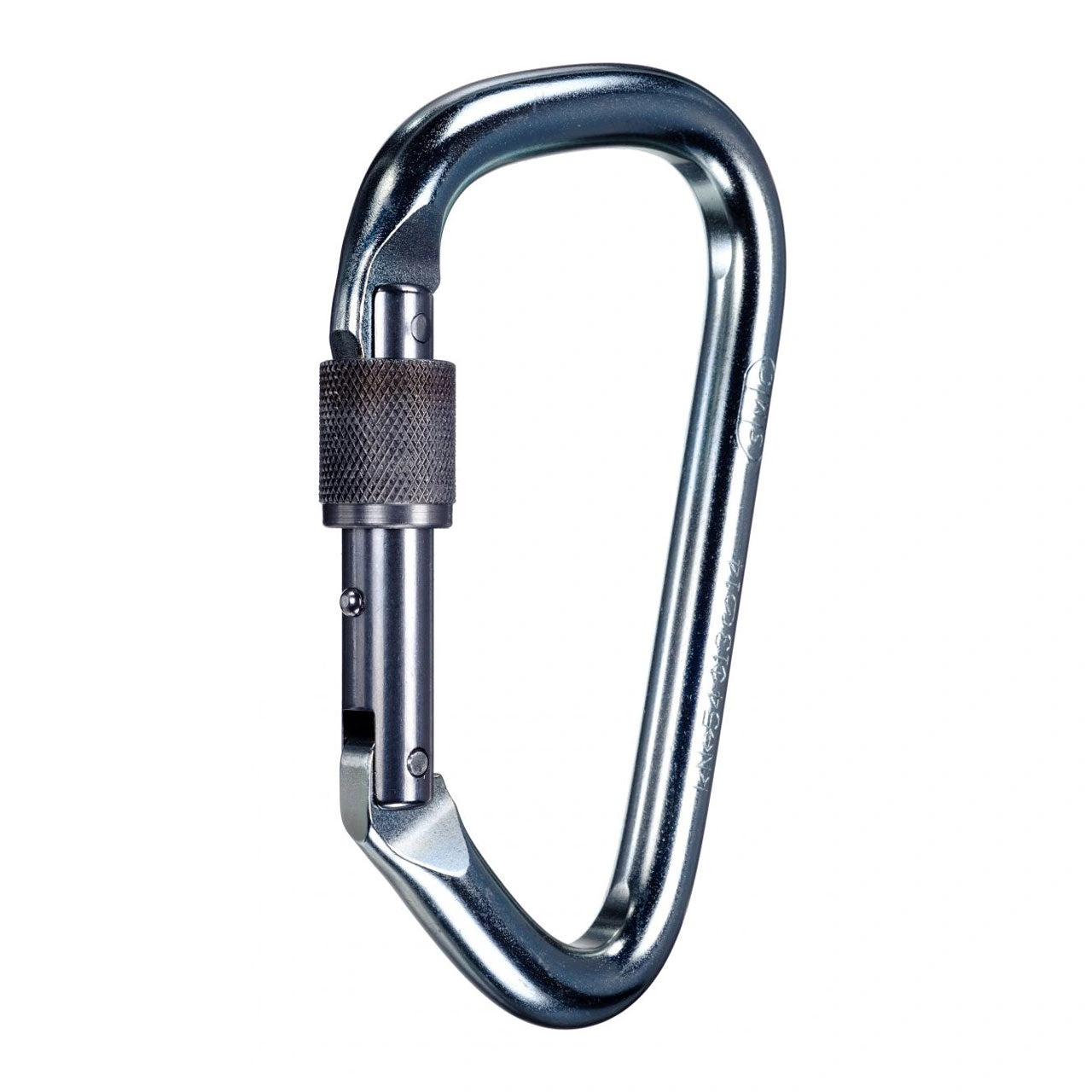

The SMC Extra Large Locking Steel Carabiner is manufactured using high quality Alloy Steel for optimal ratio of strength to weight. The off set D shape results in a larger gate opening that easily fits over litter rails. The sleeve locks on the gate rather than the body of the carabiner, eliminating problems of the knob binding on the frame once the carabiner has been loaded.

All the components found in this carabiner are meticulously hand-finished after machining, resulting in the smooth, free gate action that is the hallmark of all SMC carabiners. Additionally, each carabiner is 100% hand inspected for gate action and other functional characteristics before leaving the SMC factory. Look if you like but the chances are you’ll not find a better stainless steel carabiner anywhere.

The Extra Large Locking Steel carabiner is third party certified by Underwriters Laboratories to meet NFPA 1983 “G” General Use.

Features and Benefits

• UL certified to meet NFPA'G' General Use.
• Thread design and medium knurl provide a positive action for secure use with gloves yet is easy on bare hands.
• Sleeve is precisely aligned by hand so that it moves freely and locks on gate not the frame
• Offset D shape results in larger gate opening.
• Made in the USA.

Specifications

• Model #: NFPA20003
• Material: Steel Alloy
• Finish: Zinc Plated
• Dimensions: 5.7” x 3.5”
• Gate opening: 1.45”
• Weight: 12.2 oz (346g)
• 3 Sigma test:
  • Major axis – 54kN (12,139 lbf)
  • Minor axis – 13kN (2,922 lbf)
  • Gate open – 14kN (3,147 lbf)
• NFPA 2500 (1983) 2022 ED G
• Made In USA
